NIMO TR0815 - Lambda-X Ophthalmics

Proven worldwide for precise

characterization of Premium IOL.

Proven worldwide for precise
characterization of Premium IOL.

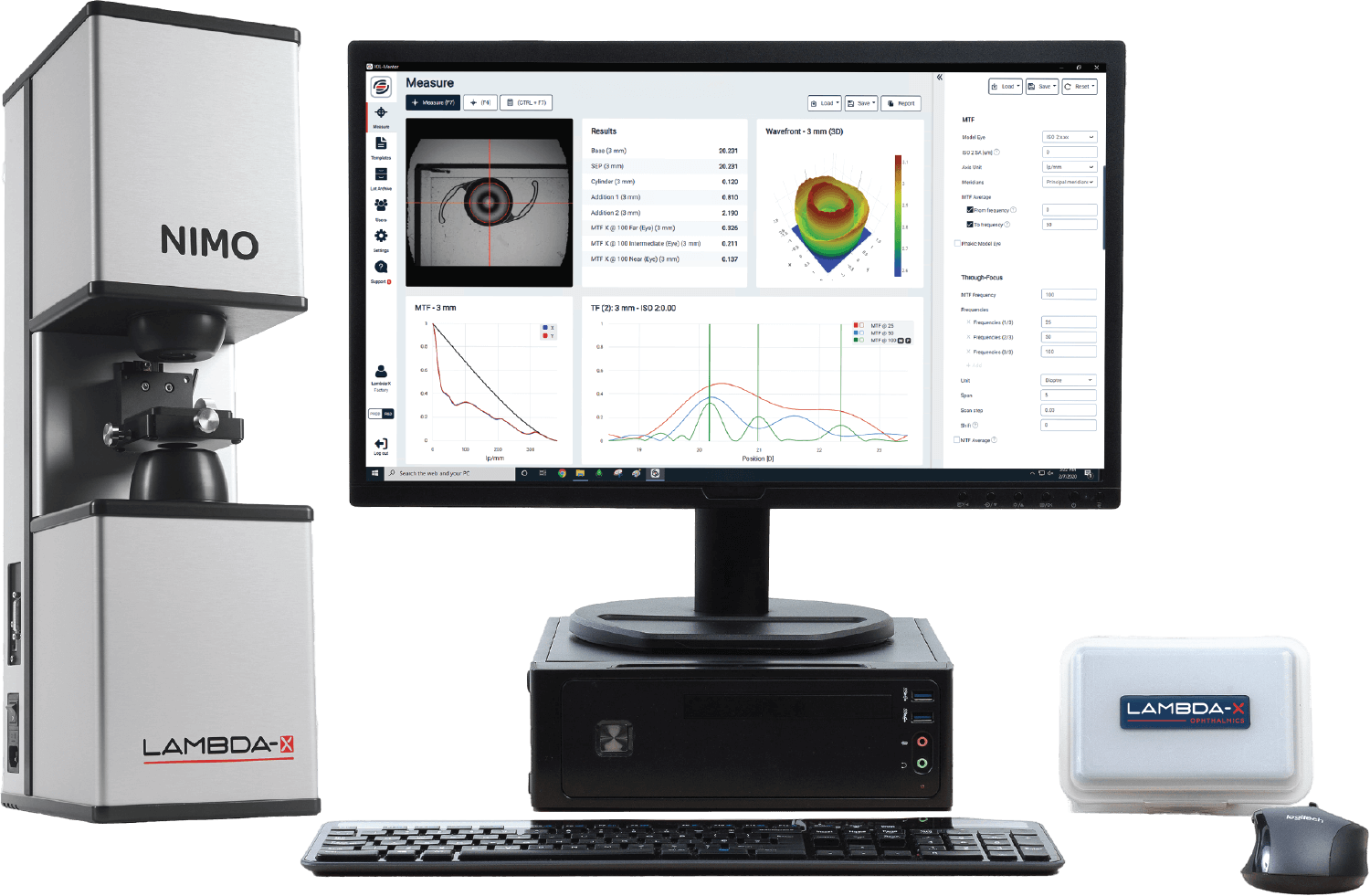

NIMO TR0815 is a proven & established optical metrology instrument built on Lambda-X’s proprietary Phase Shifting Schlieren (PSS) technology. Designed for both R&D and production, it provides fast, accurate, and operator-independent characterization of intraocular lenses (IOLs).

Paired with the NIMO-Mentor software, the TR0815 offers powerful optical analysis, streamlined workflows, and reliable data management for both development and production environments. Its capabilities can be further extended through a range of software plugins, enabling advanced analysis and customization.

With its precision, robustness, and ease of use, the TR0815 has become a trusted reference in IOL metrology worldwide.

The NIMO TR0815 family gives you the flexibility to choose the configuration that best matches your R&D or production needs.

Wavefront-based Metrology with Phase Shifting Schlieren (PSS)

HOW IT WORKS

NIMO TR0815 uses Lambda-X’s proprietary Phase Shifting Schlieren (PSS) technology to measure the full optical performance of intraocular lenses (IOLs). Instead of relying on laser interferometry, PSS captures a series of phase-shifted images as light passes through the IOL. These images are then processed by advanced algorithms to reconstruct the lens’s wavefront with high precision.

The system is composed of three integrated components:

• a stable illumination source and optical mask (Schlieren filter)
• the phase-shifting module
• high-resolution imaging optics and camera

Together, these enable the acquisition of phase-shifted intensity patterns that are combined into a full wavefront map — providing detailed insights into imaging quality, optical design characteristics, and manufacturing precision.

Measurement results

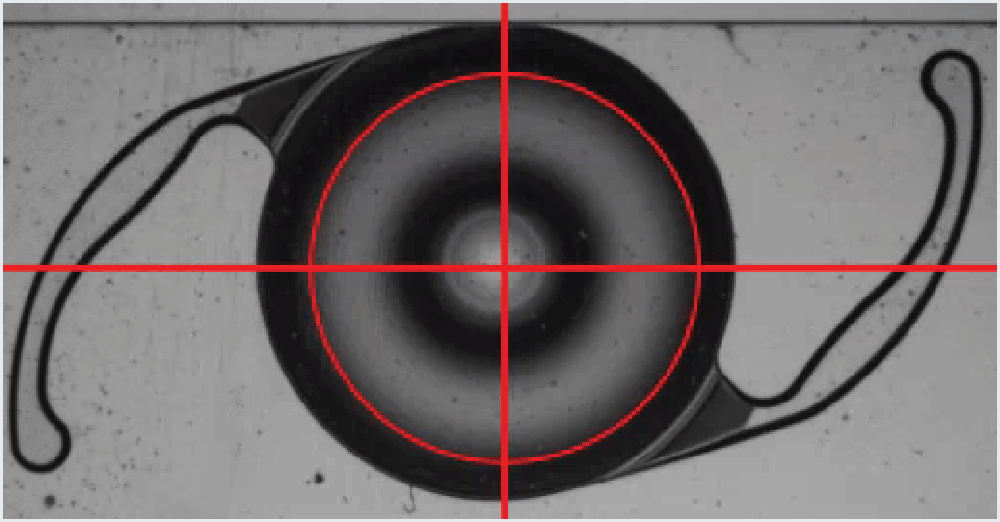

Camera live image

Modulation map

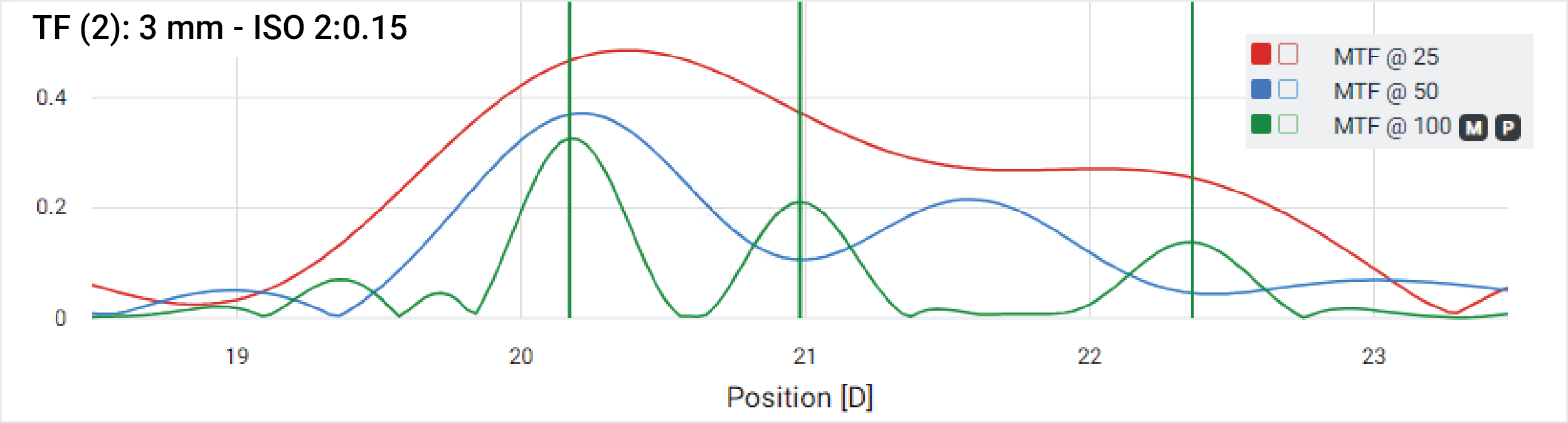

Through-focus MTF of a commercial multifocal lens

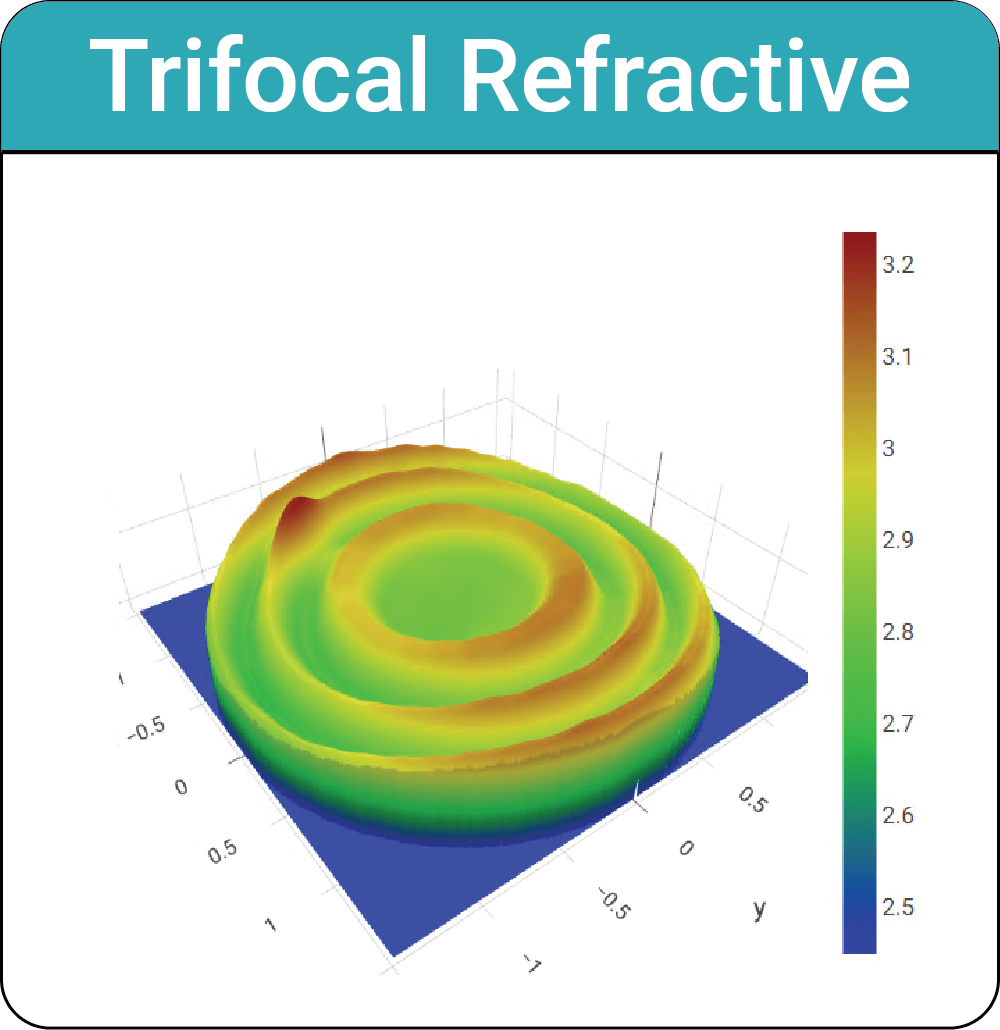

Wavefront

Power profiles

Why Phase Shifting Schlieren Makes the Difference!

Conventional IOL metrology systems, such as Shack–Hartmann sensors, face limitations in alignment sensitivity, range, and dimensionality.

Phase Shifting Schlieren (PSS) captures phase-shifted intensity patterns and reconstructs the full wavefront of the IOL. The result is 3D, quantitative data that conventional methods cannot achieve -combining precision, robustness, and speed in a single technology:

• Wide dynamic range (±100 D): Suitable for all refractive IOL designs

• Insensitive to positioning: Accurate, operator-independent measurements

• High repeatability (≤0.01 D): Consistent results across R&D and production

• No moving parts: Robust design, stable over time, minimal maintenance

• Fast measurement cycle: Complete IOL characterization in 4–10 seconds

• Full 3D wavefront characterization: Unlike other systems that measure only in X–Y, PSS reconstructs across X, Y, and Z axes for true three-dimensional insight

Phase Shifting Schlieren is a patented Lambda-X Ophthalmics innovation (Patents: WO03/048837, US2005/0036153A1).

Optical Characterization

FOR ALL REFRACTIVE IOL TYPES

Manufacturers and R&D teams can rely on NIMO TR0815 for fast, reliable characterization of all refractive IOL designs. Whether designing new optical concepts or ensuring repeatability in production, it delivers precise, consistent data across monofocal, multifocal, toric, and refractive EDoF lenses.

With high-resolution Phase Shifting Schlieren (PSS) technology, NIMO TR0815 provides accurate characterization of refractive IOLs. The examples above show wavefront-based measurements as well as through-focus and through-frequency MTF curves, lens powers, cylinder, and label axis error – all captured in a single measurement cycle.

High-Precision Metrology for All IOL Designs

KEY BENEFITS

High Accuracy

& Repeatability

Precise MTF, power, cylinder, and axis measurements with best-in-class repeatability.

Fast

Cycle Time

Complete IOL characterization in just a few seconds.

Operator-

Independent

Automatic detection and centering ensures consistent results.

Cost-Efficient

Quality Control

Proven PSS technology reduces errors and inspection costs.

Did you know?

NIMO TR0815 uses patented Phase Shifting Schlieren (PSS) technology to reconstruct the full wavefront of refractive IOLs – capturing 3D, quantitative data beyond what conventional Shack–Hartmann and other systems can deliver.

It’s a widely adopted NIMO platform, trusted by both R&D labs and production lines for its unmatched repeatability, reliability, and ease of use.

Modulation Transfer Function

MTF

The NIMO TR0815 provides full-resolution through-focus and through-frequency MTF analysis, enabling precise assessment of refractive IOL image quality. Powered by Phase Shifting Schlieren (PSS) technology, it delivers high repeatability and robust performance across all refractive IOL types.

Detailed MTF Analysis

Provides through-focus and through-frequency MTF, giving a full characterization of lens imaging performance.

Multiple Apertures

Simultaneously calculating MTF at up to 3 different apertures and multiple frequencies for thorough lens performance analysis under various conditions.

Wavefront Analysis

Comprehensive PSS technology ensures precise optical quality assessment and high-resolution results.

Comprehensive Data

High-resolution MTF curves for in-depth analysis, supporting quality control and product development.

Precise IOL Power Mapping at ISO-Compliant Apertures

POWER

NIMO TR0815 enables high-precision analysis of IOL optical power using wavefront-based measurements. It captures key parameters – including Spherical Equivalent Power (SEP), cylinder, and additions – with highest accuracy and excellent repeatability, even for complex diffractive profiles.

High Precision

Accurate assessment of optical power with detailed power maps and profiles, ensuring precise lens characterization.

Comprehensive Analysis

Measures sphere, cylinder, and power addition to provide a comprehensive evaluation of the lens optical quality.

Flexible Measurement

Accurate assessment of optical power with detailed power maps and profiles, ensuring precise lens characterization.

Consistent Results

PSS technology ensures stable, repeatable measurements with ≤0.01 D precision.

Accurate Dimensional Analysis

DIMENSION

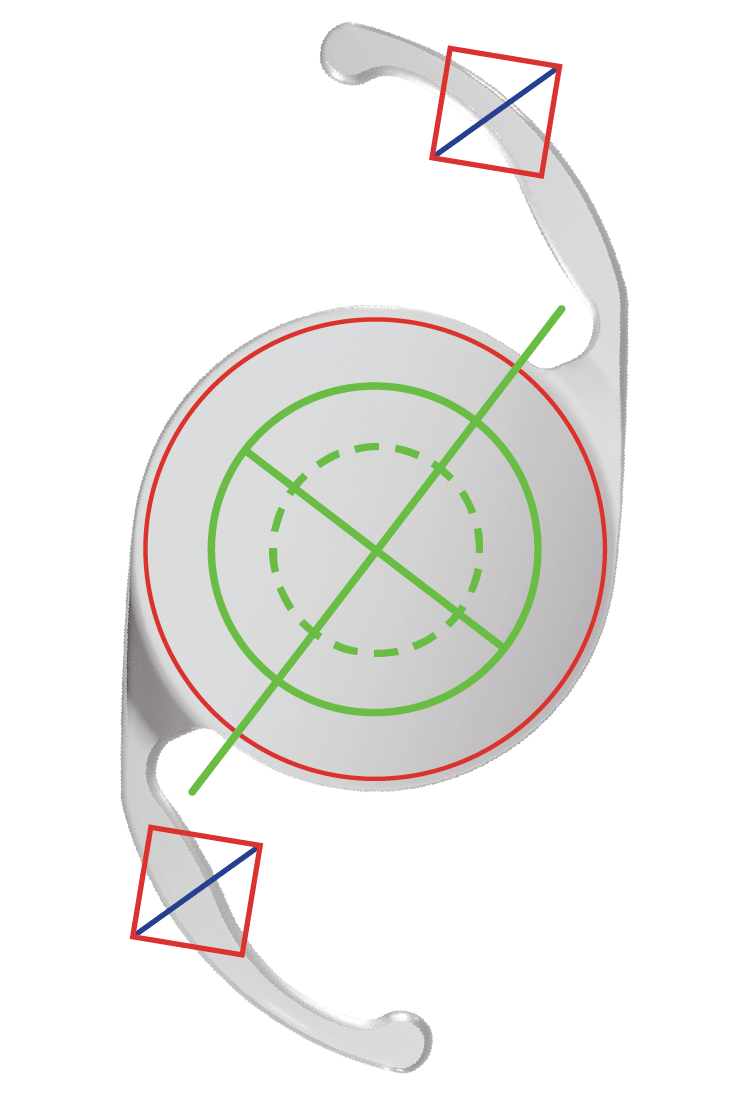

With the NIMO TR0815 dimension option, you can perform precise dimensional analyses of IOLs in addition to optical measurements. The extended field of view enables accurate detection of lens diameter and optical center, making it ideal for applications where both optical and geometrical evaluation are required.

Extended Field of View

Enable comprehensive haptics measurement and lens diameters (optical and overall) verification.

Automatic Recognition

Detect automatically the lens diameter and optical center for precise alignment and quality control.

Versatile Capability

Measures both geometric and optical centers, ensuring thorough dimensional analysis.

Custom Measurements

Customizable measurement points as per customer specifications, providing flexibility in quality control.

High-Throughput Efficiency

MULTILENS

NIMO Multilens is built to scale up production. By characterizing up to 10 IOLs in a single dry run, it dramatically reduces cycle time while maintaining the same accuracy and repeatability trusted across the NIMO range. Available for TR0815 configurations, the Multilens jig also simplifies lens handling between production stations, minimizing manual manipulations.

Faster Workflows

Analyze multiple lenses at once for quicker production cycles.

Higher Productivity

Test more lenses per shift without compromising accuracy.

Consistent Quality

Every lens evaluated with the same reliable standards.

Reduced Lens Handling

The jig minimizes manipulations between production steps.

Need Higher Production Throughput?

Automation Turn-Key Solution

For production lines that go beyond the flexibility of the TR0815 family, NIMO Matrix offers a complete turn-key system for mass production. Capable of analyzing up to 300 IOLs per hour in both wet and dry measurement modes, it combines high throughput with the trusted accuracy and repeatability of the NIMO range – ensuring reliable quality at scale with minimal operator intervention.

Integration for Automated Systems

AUTOMATION-READY

The C-NIMOevo offers advanced metrology capabilities for automated production workflows. Retaining the same high optical precision and performance as the NIMOevo, it is compact and integration-ready, making it the ideal choice for OEM automation systems.

Why Choose C-NIMOevo for Automation?

OEM Integration

Larger space and added flexibility enable smooth integration with automated lens feeders. The mounting plate provides great flexibility to fix the instrument in optimal position.

Matches the NIMO TR0815

Identical specifications in optical performance and precision.

System Connectivity

API-based connectivity simplifies incorporation into existing manufacturing systems.

Enhanced Productivity

Fast measurements ensure high throughput and efficiency.

Integrated IOL-Mentor Software

Delivers advanced analysis and data management capabilities.

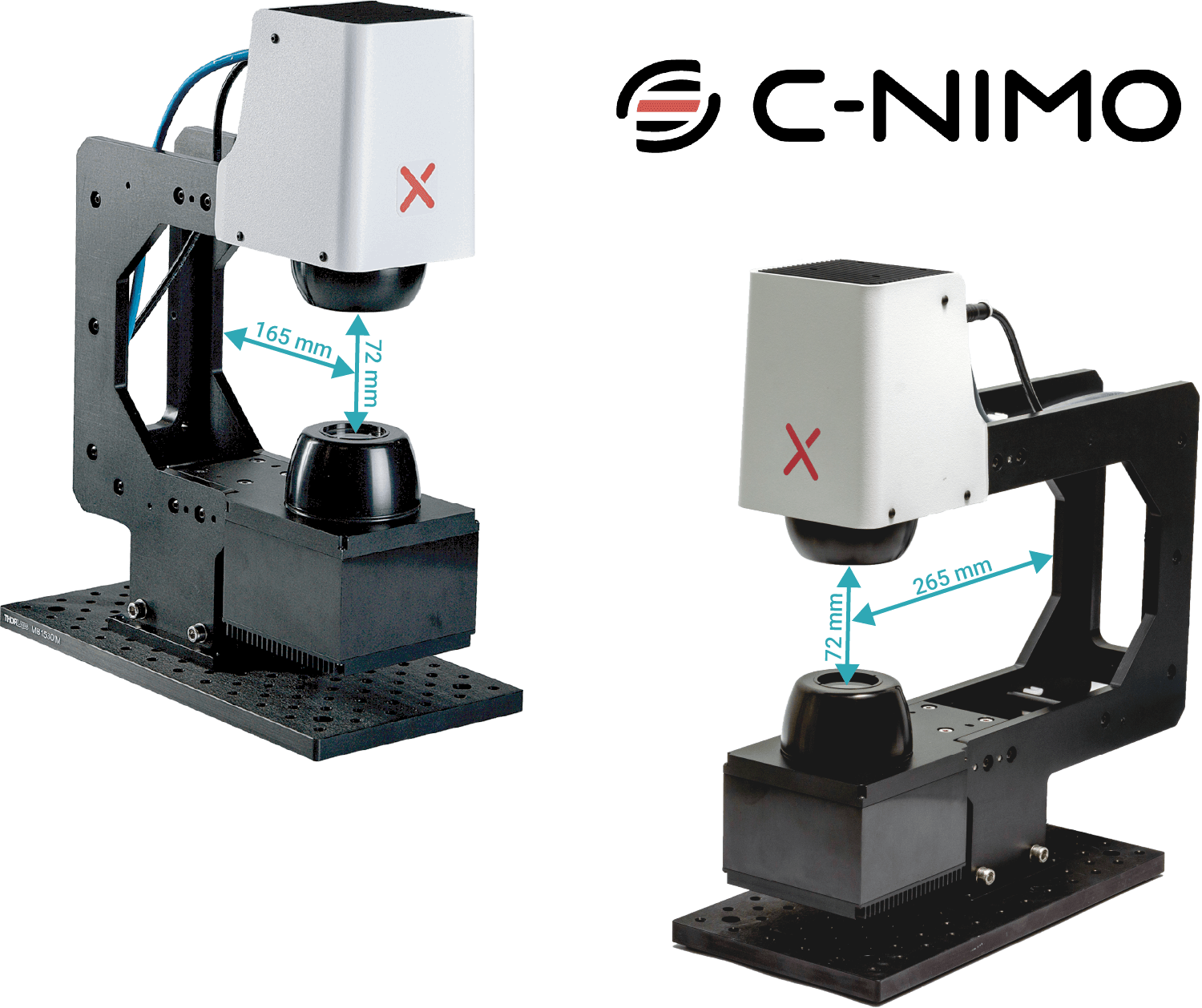

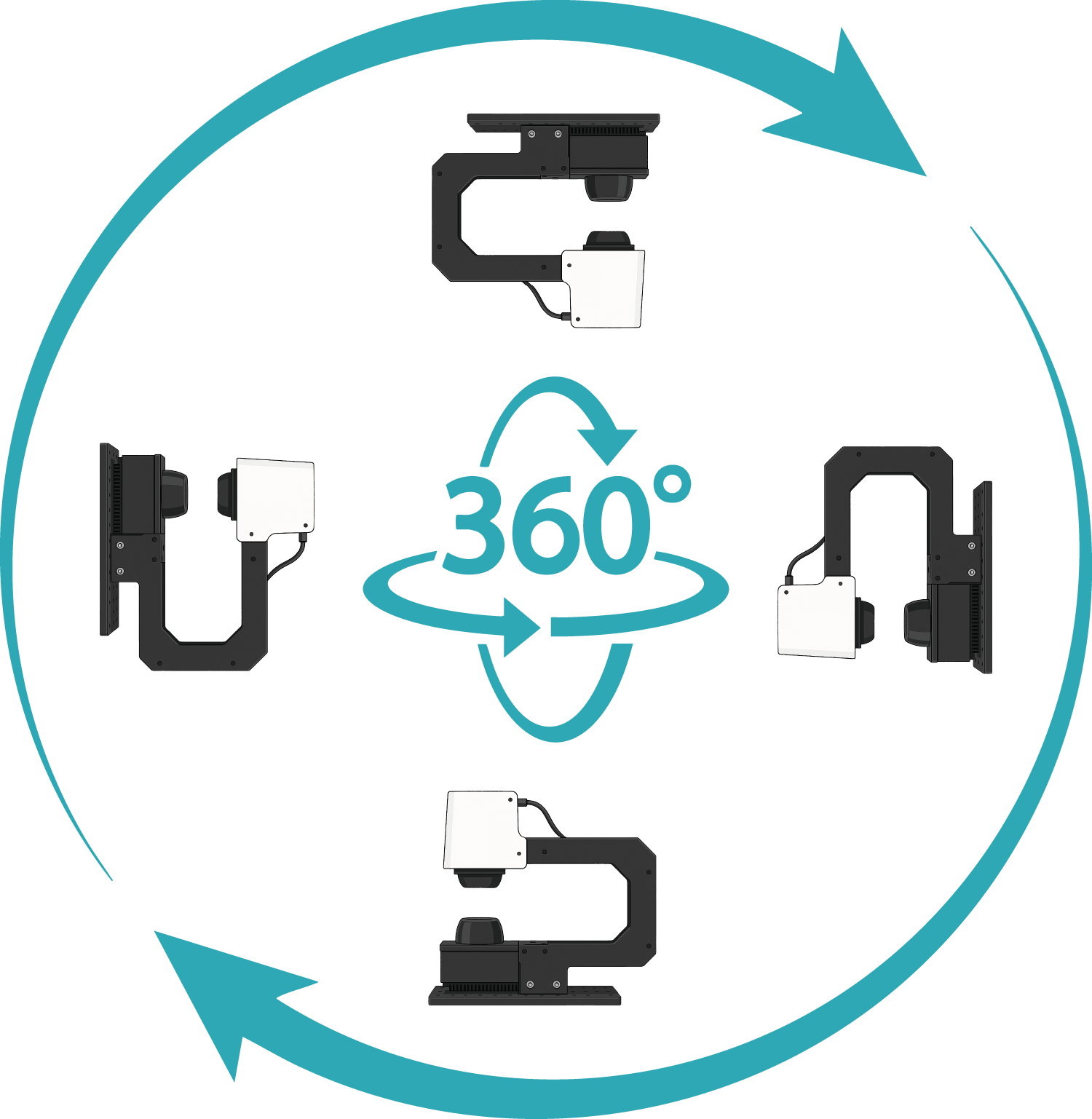

Two frame spans: 165 mm (compact) or 265 mm (extended) working distance
– choose the clearance that fits your OEM layout.

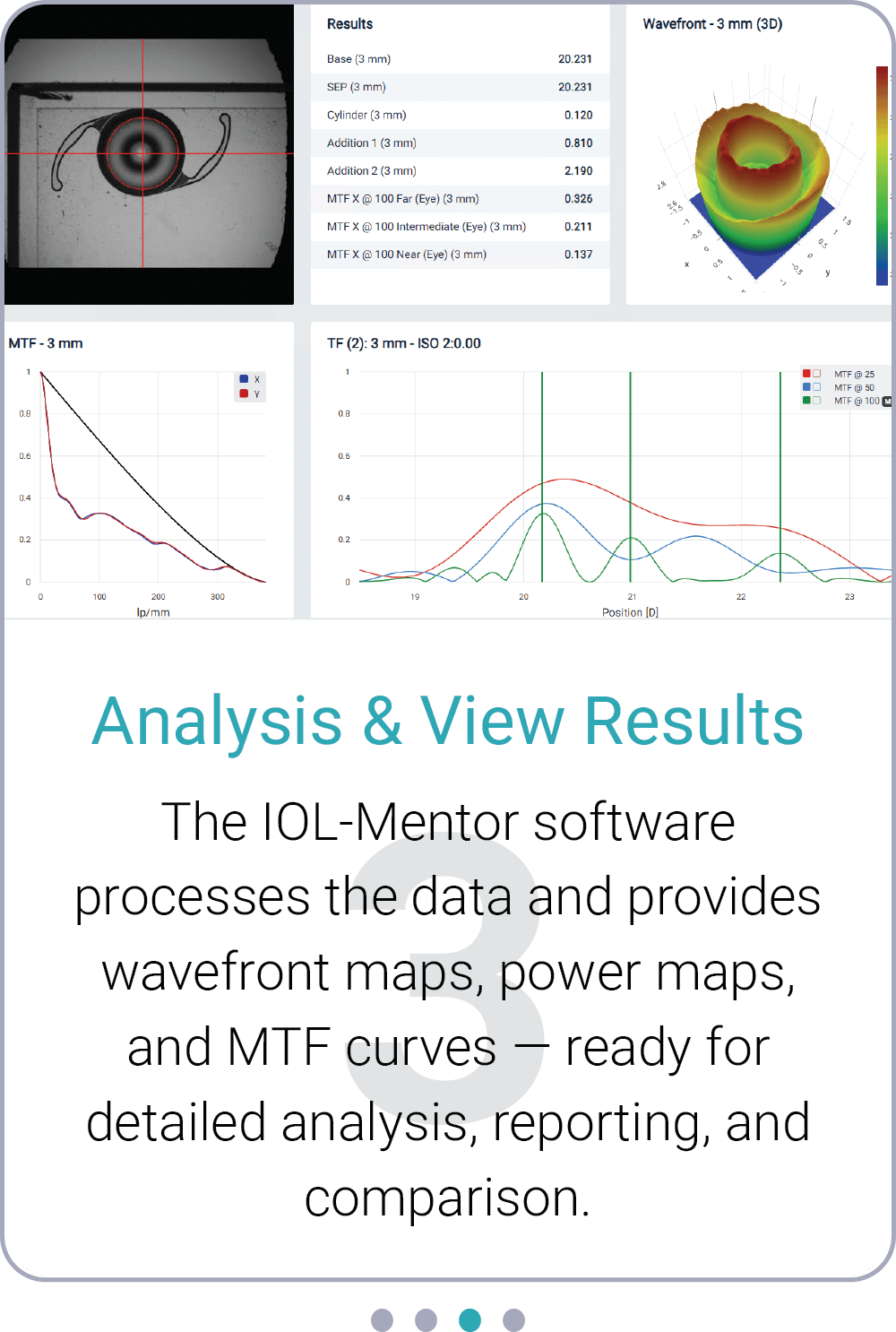

Comprehensive Insights for IOL Optical Quality

Detailed Measurement Reporting

NIMO TR0815 delivers comprehensive reports tailored for IOLs, providing ultra-precise data – ensuring consistency across all IOL designs.

Raw Data Export

Complete export of measurement results for in-depth optical analysis and traceability.

Integrated Reporting

Includes full-resolution wavefront maps, MTF curves, and step profiles – all accessible from a single report.

Quality Assurance

Ensures all data is securely stored, version-controlled, and easily accessible for quality and compliance teams.

Detailed lens analysis with wavefront maps and MTF curves, enabling precise reporting for power, cylinder, axis and additions.

Fast. Precise. Trusted
by IOL Manufacturers

Proven optical metrology for refractive IOLs, combining precision with operator-independent performance.

Optimized for Both Research and Production

TWO MODES FOR ENHANCED FLEXIBILITY

IOL-MENTOR software adapts to both R&D and production environments, offering two tailored modes to meet different workflow needs. Whether you’re developing new refractive lens designs or running routine quality checks, the TR0815 ensures control, repeatability, and efficiency.

Provides full access to all measurement parameters and outputs, giving researchers complete flexibility.

Analyze wavefront maps for refractive IOL types
Detailed analysis of Power, Cylinder, Additions, and MTF (through-focus and through-frequency)
Data export with Zernike decomposition and PSF (linear/log) for in-depth evaluation
Reprocess and compare lens data across test sessions
Customize workflows to match specific R&D protocols

Ideal for developing new optical structures, validating performance, and fine-tuning lens designs.

Guides operators through intuitive, lockable workflows designed for speed, consistency, and quality control.

Predefined templates that prevent parameter changes during measurement
Lens detection and centering for alignment-free measurement
Automated pass/fail reports for batch release
Full traceability with integrated data logging and database connection
Automation ready for higher throughput environments

Production managers can set user access levels and connect the system to automated lines – ensuring secure, scalable operation.

TRUSTED BY INDUSTRY EXPERTS

Aurolab is using NIMO metrology instruments for years to measure all types of IOLs with great reliability and accuracy.

We chose Lambda-X’s NIMO technology for its superior accuracy and best R&R ratio, even with new operators. NIMO instruments deliver high throughput, quick ROI, and consistent performance across all IOL designs, making them a key asset for our operation.

With more than 15 years of collaboration with Lambda-X, the NIMO instruments have become essential to our production control and new product development. NIMO instruments provide the accuracy and reliability we need for both production measurements and advanced optical design work.

We now operate over ten NIMO optical benches in our facilities. Their performance and consistency make them a key part of our quality and innovation processes.

Additional Analysis Capabilities

SOFTWARE PLUG-INS

The IOL-Mentor software is designed to be flexible and extendable, offering a variety of plug-ins to enhance its functionality and tailor it to specific needs.

Automatic Toric Lens Marks Detection

Extended Depth
of Focus

Decentration
Analysis

Multi-focus

ISO2
Model Eye

Phakic
Model Eye

9th Order
Polynomial Correction

Active
Directory

Production Software Integration API

Automatic Toric Lens Marks Detection (TLMD)

The TLMD plugin automates the detection of engraved toric marks on IOLs to determine axis orientation. By reducing manual input, it minimises human error and speeds up the measurement process. Custom detection patterns can be configured and saved using a dedicated interface. Parameters such as threshold, angle range, and minimum mark spacing are adjustable to ensure robust performance across various lens types.

Automated Detection: Identifies toric lens engravings with predefined patterns, reducing manual errors.

Axis Computation: Measures the alignment error between toric marks and the actual lens axis.

Flexible Modes: Supports Auto, Manual, and None detection methods to fit different workflows.

Pattern Management: Allows creation and storage of custom detection patterns.

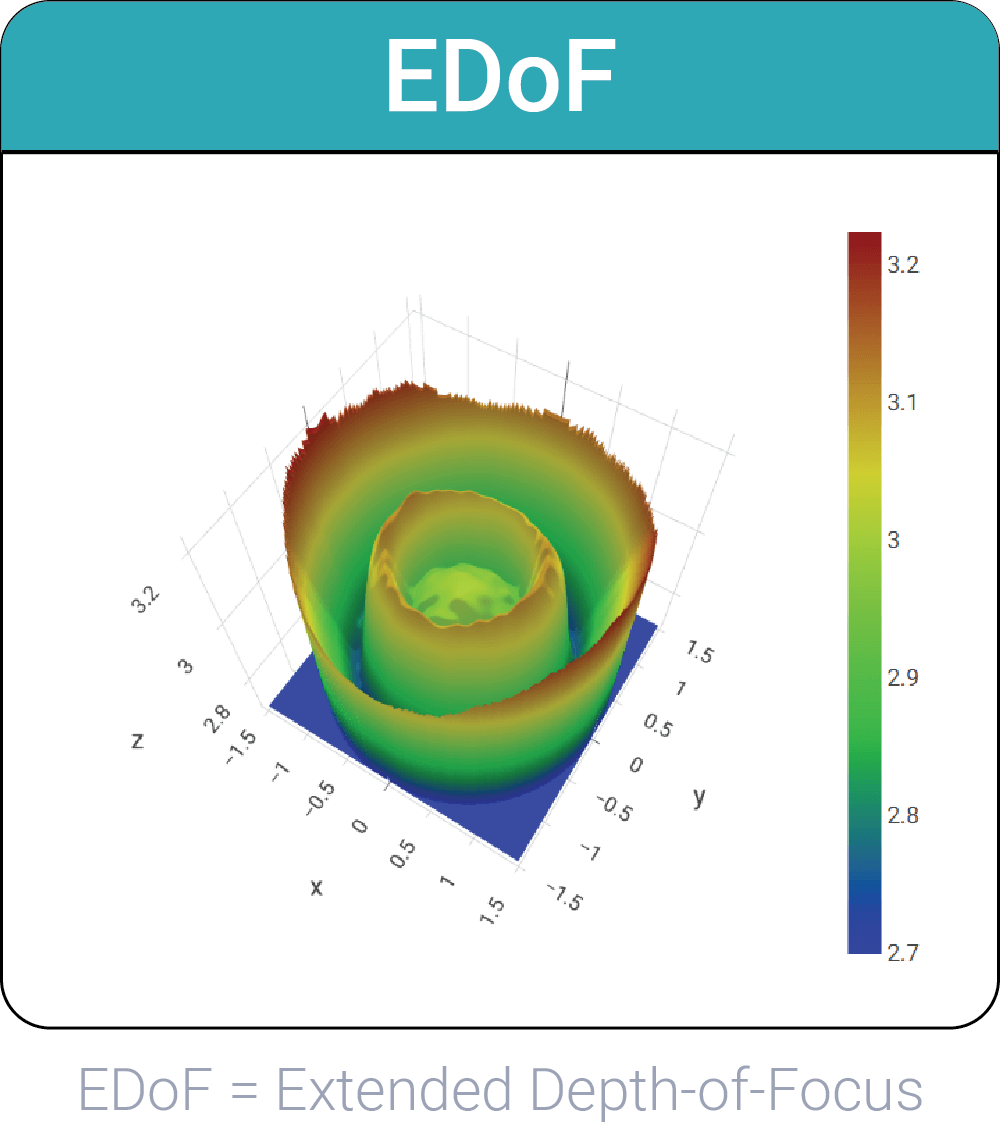

Extended Depth of Focus (EDoF)

The EDoF plugin provides two complementary evaluation modes – Peak + Addition and Depth of Focus (DoF) – to assess lens performance across a range of focal points. It is particularly useful for analyzing complex designs such as multifocal and EDoF IOLs.

Peak + Addition Measurement: Evaluates MTF at a chosen addition point and visualizes the integrated optical quality over that zone.

Depth of Focus (DoF) Measurement: Quantifies the optical range where contrast remains above a user-defined MTF threshold.

Custom Parameters: Supports configurable inputs such as addition value, spatial frequency, and peak selection (far/intermediate/near).

Enhanced Visualization: Displays shaded MTF curve zones and markers for intuitive interpretation of depth performance.

Decentration Analysis

The Decentration Analysis plugin measures and verifies the alignment between the optical and geometrical centers of an IOL. It ensures that the optics are properly centered relative to the lens body, helping to guarantee lens quality and compliance in production.

Center-to-Center Verification: Detects offset between optical and geometrical centers with high precision.

Quality Assurance: Ensures lenses meet alignment specifications for both R&D and manufacturing.

Operator-Independent: Automated detection reduces variability and improves repeatability.

Improved Traceability: Results can be stored and compared across batches for robust process control.

Multi-focus

The Multi-focus plugin enhances through-focus analysis by detecting multiple focal points in intraocular lenses (IOLs). This enables evaluation of bifocal and trifocal designs beyond the single focus detected in the base software.

Extended Detection: Identifies up to two additional foci (for trifocal lenses) from through-focus MTF curves.

Accurate Performance Mapping: Provides detailed information on optical quality across multiple addition points.

Advanced Lens Analysis: Supports assessment of complex IOL designs, including multifocal and trifocal configurations.

ISO2 Model Eye

The ISO2 model eye plugin enables standardized evaluation of IOLs by applying controlled levels of spherical aberration, as defined by the ISO 11979-2 recommendations. This provides a consistent and reliable reference environment for assessing lens performance.

Configurable Aberrations: Choose from predefined ISO2 spherical aberrations (0.00 μm, 0.10 μm, 0.16 μm, 0.20 μm, 0.28 μm) or freely set values up to 0.45 μm for advanced testing.

Standardized Evaluation: Ensures results align with ISO2 requirements, supporting consistent comparisons across different IOL designs.

Flexible Processing Modes: Available in both paraxial and non-paraxial processing, allowing realistic testing conditions.

Enhanced Analysis: Provides a reliable basis for comparing lens performance under controlled optical conditions.

Phakic Model Eye

The Phakic Model Eye plugin extends the synthetic model eye by including a crystalline lens, enabling realistic testing of phakic IOLs. It provides a controlled environment for evaluating lens performance while maintaining compatibility with the standard model eye (cornea).

Realistic Simulation: Incorporates both a crystalline lens and phakic IOL for accurate optical modeling.

Flexible Configuration: Can be combined with the standard model eye (cornea) for comprehensive testing setups.

Standardized Evaluation: Provides a reproducible environment for consistent comparison of phakic IOL designs.

Extended Applications: Supports research and development of phakic IOLs alongside conventional IOL metrology.

9th Order Polynomial Correction

The plugin allows refined post-processing of power results using a 9th-order polynomial. It expands on the default 4th-order correction in IOL-Mentor to better align reported values with reference standards. While it does not alter the measured curve itself, it applies a correction to the reported power values in the Results section. This is useful for calibration and traceability when higher-order deviations are present in the system.

Extended Correction Range: Applies a polynomial fit up to the 9th degree to handle complex deviations.

Custom Coefficients: Supports individual input for each coefficient (A0 to A9) to match calibration needs.

Improved Result Accuracy: Refines displayed power values to better match actual lens behavior.

Standards Compliance: Supports precise reporting in line with internal or external QA standards.

Active Directory

Registered Windows users can log in with their existing credentials, avoiding duplicate accounts. This integration ensures your security policies and user management are applied automatically, enhancing both security and ease of use.

Production Software Integration API

The IOL-Mentor API enables full integration with the production and quality control environments. It supports remote control of the instrument, automated measurement workflows, real-time data extraction, and secure connectivity with internal and third-party systems.

This makes it ideal for centralized floor management, robotic setups, and custom enterprise software solutions – ensuring scalable and repeatable IOL measurements across the most demanding production lines.

Remote Instrument Control: Configure, calibrate, and operate instruments from your central software – including parameter updates and system references.

Automated Measurement Workflows: Trigger sequences such as optical reference, lens loading, and measurement completion – enabling integration with robotic arms.

Real-Time Data Access: Extract measurement results instantly for QA validation, ERP systems, or production databases.

Template Management: Create and lock measurement templates across instruments and locations – ensuring consistency and speed.

Software Ecosystem Compatibility: Easily integrate with in-house dashboards, LIMS, ERP, and QA systems through the public API. This enables flexible deployment and aligns the instrument with existing digital workflows for efficient production and traceability.

Essential Add-ons for Superior Results

ACCESSORIES

We offer a range of specialized tools to enhance the NIMO TR0815 system, ensuring precision, efficiency, and optimal performance for your IOL design and production.

Biocompatible
IOL Holders

Compatible with IOLs from 10 to 13mm in outer diameter. Custom holders available on request.

Interferometric Quality
Wet Cells

High-precision wet cells designed for accurate measurements

Calibration
Lens Kit

Select from calibrated plano-convex glass lenses. Spherical and Toric lenses in stock. Custom versions available on request.

Multilens
JIG

Measure up to 10 IOLs in one run. Custom versions available on request.

Don’t find the accessories
you’re looking for?

Key Metrics and Capabilities

TECHNICAL SPECIFICATIONS

The NIMO TR0815 comes with IOL-Mentor software, necessary accessories, and documentation to get started immediately.

Choose the NIMO TR0815 configuration that fits your R&D or production needs.

Operator-Independent to Achieve Unmatched R&r

EASE OF USE

The NIMO TR0815 system, with its integrated IOL-Mentor software, is designed for straightforward operation and can be used in both R&D and production environments with minimal training.

These features simplify IOL characterization and deliver consistent, repeatable results with reduced operator dependency.

Download

BROCHURE

Ophthalmic Inspection Instruments

EXPLORE OUR FULL RANGE

Explore all our other metrology solutions for ophthalmic lenses, each designed to meet the unique needs of lens manufacturers. Enhance your production efficiency, ensure precise quality control, and achieve unmatched performance with our specialized instruments.

Intraocular Lenses
