Next-Generation MTF Bench Metrology for IOL Characterization
WHY LUMI BENCH?
LUMI Bench is a next-generation MTF bench designed to support the ISO 11979-2:2024 Annex C. It combines photopic white-light illumination, interchangeable physical chromatic model eyes and advanced optical analysis in a compact, easy-to-use platform for pre-clinical IOL characterization.
WHITE-LIGHT MEASUREMENT
Photopic white-light illumination for clinically relevant IOL characterization.
PHYSICAL CHROMATIC MODEL EYE
Interchangeable physical chromatic model eyes for optical evaluation.
TILT & DECENTRATION
Precise positioning for repeatable tilt and decentration analysis.
HALO CHARACTERIZATION
Evaluate halo behavior across multiple optical conditions.

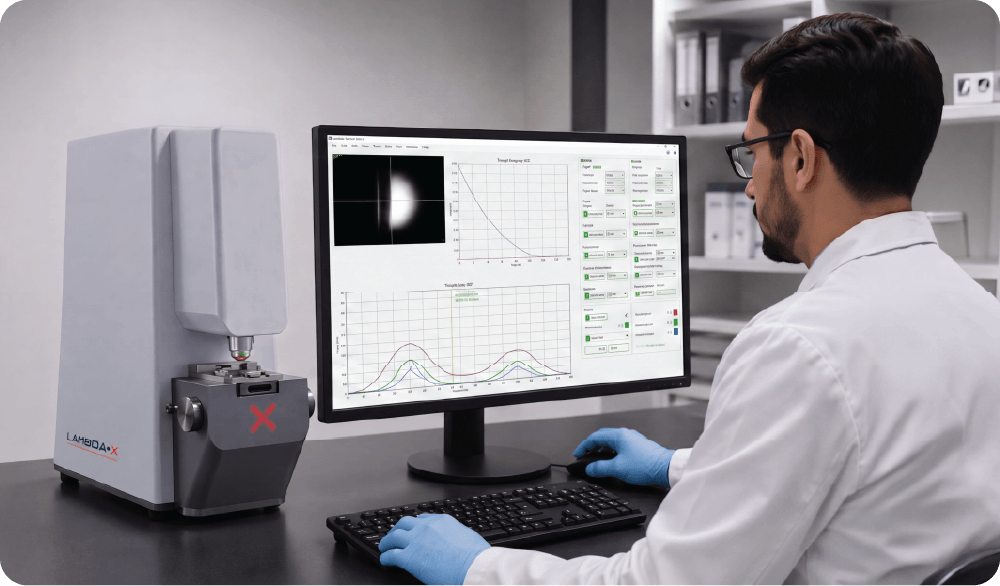

LUMI BENCH IN ACTION
ADVANCED WHITE-LIGHT IOL CHARACTERIZATION
Watch Noé Villemagne demonstrate LUMI Bench’s white-light IOL measurements, tilt and decentration, and halo characterization in support of ISO 11979-2:2024.
Purpose-built white-light optical bench developed to measure lens performances in accordance with ISO 11979-2:2024 Annex C.
Interchangeable Chromatic Model Eyes
PRECISION BY DESIGN
Evaluate IOL performance across different corneal spherical aberrations while maintaining consistent paraxial power and chromatic aberrations.
Interchangeable Easily switch between different corneal spherical aberration configurations.
Same paraxial power Maintain consistent paraxial power across model eyes.
Same chromatic aberrations Maintain consistent chromatic aberrations across configurations.

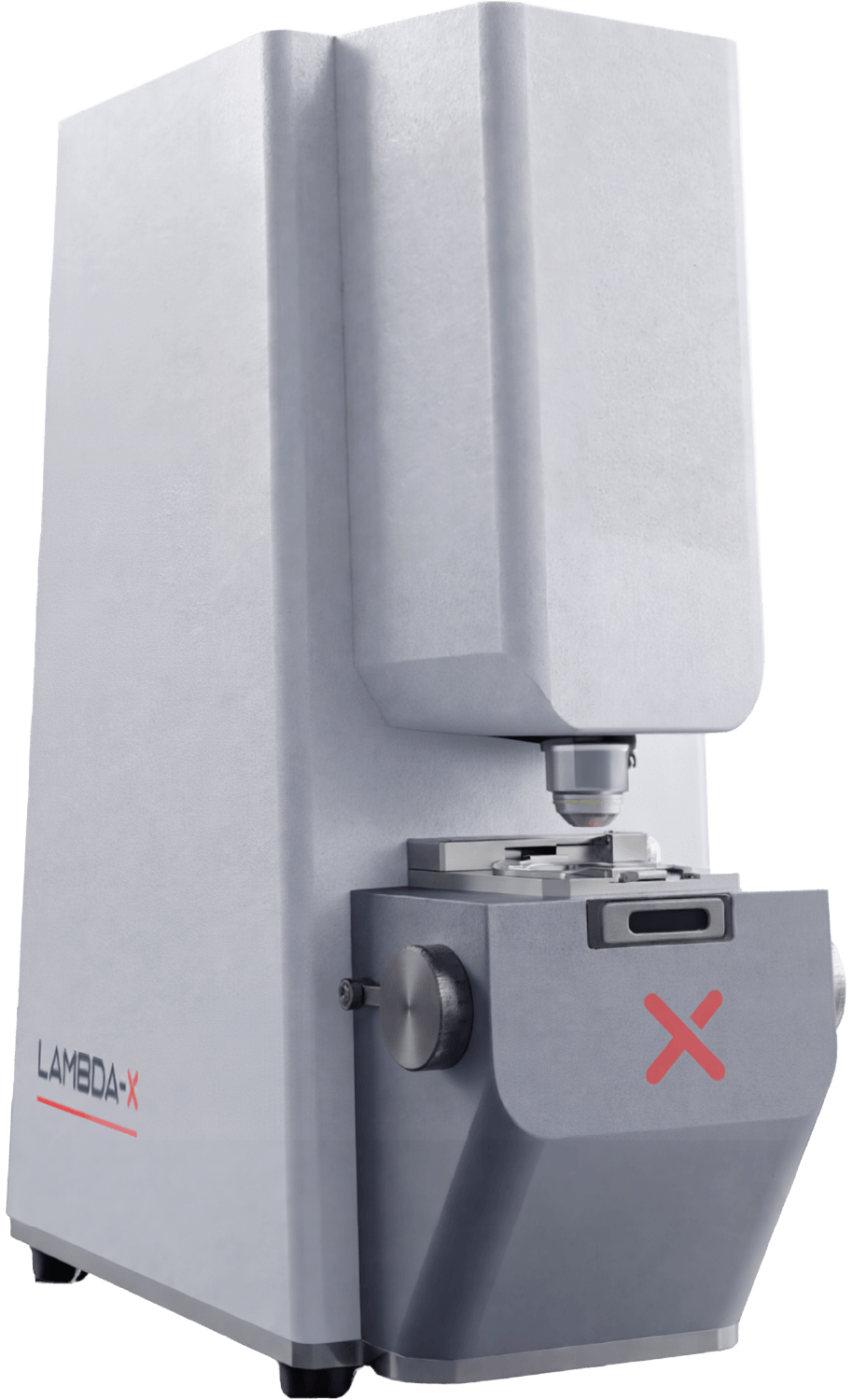

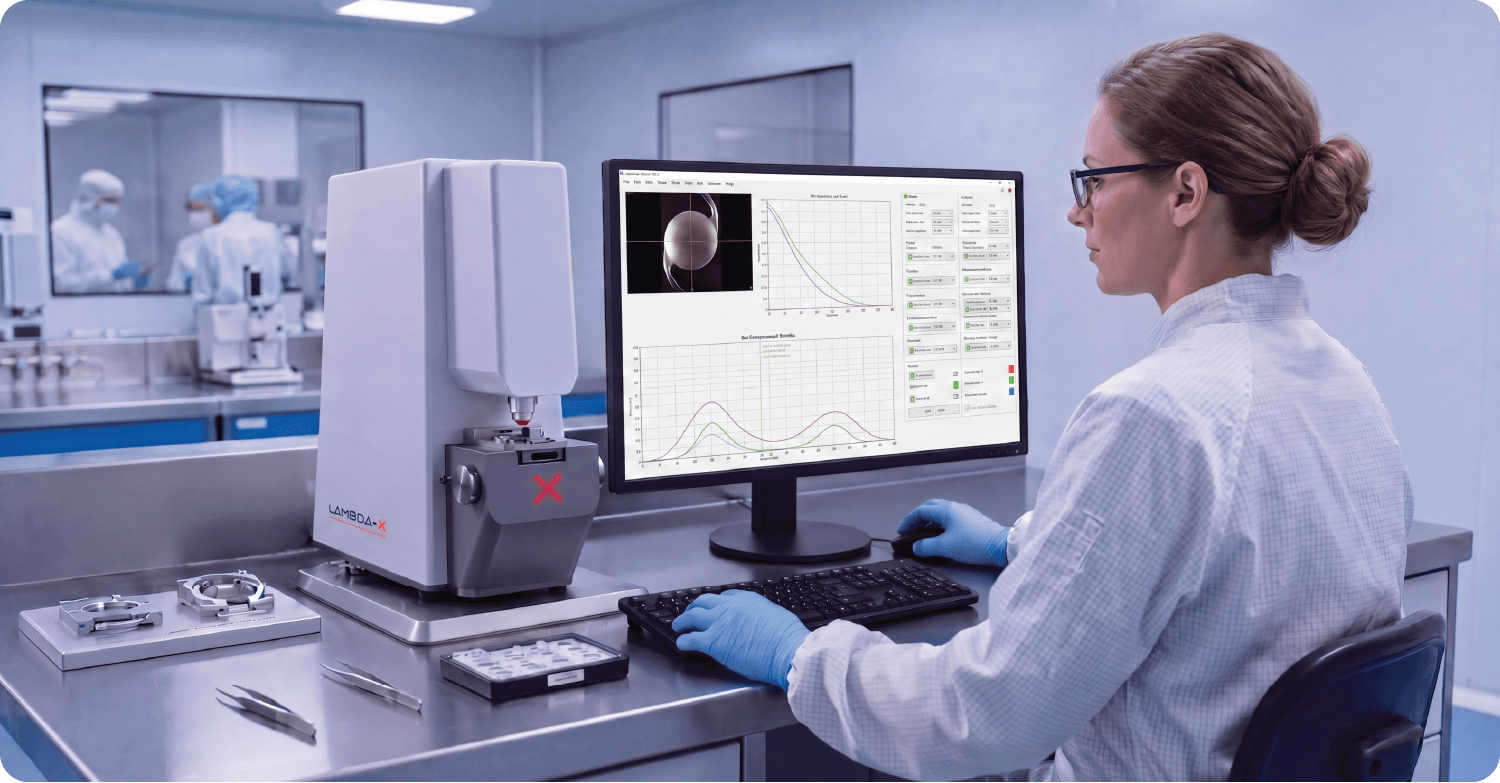

A closer look at the LUMI Bench
PRECISION IN PRACTICE
LUMI Bench combines interchangeable physical model eyes with accurate IOL positioning, enabling realistic optical evaluation and analysis of tilt and decentration.
Physical Chromatic Model Eye
Evaluate IOL optical performance using interchangeable physical chromatic model eyes with different corneal spherical aberrations.

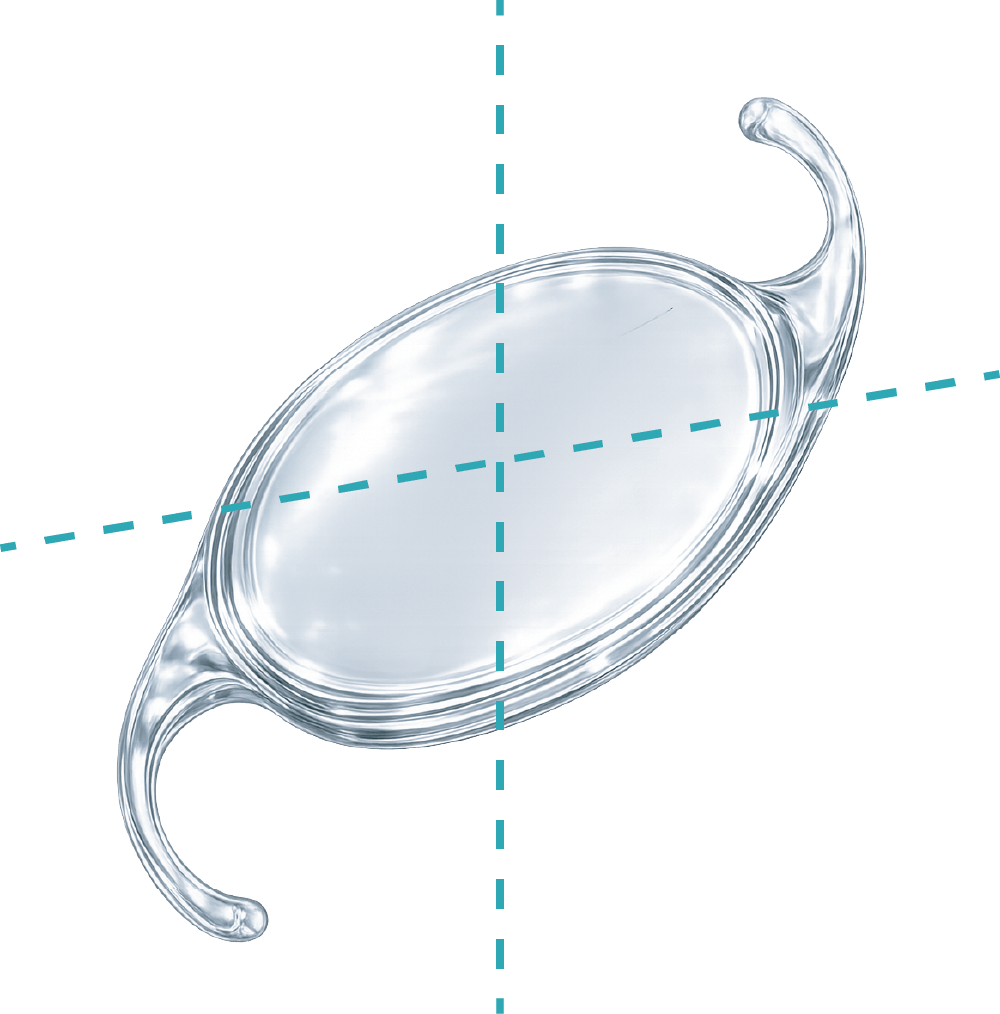

Tilt & Decentration Analysis
Evaluate how IOL misalignment affects optical performance through controlled tilt and decentration measurements.
From measurement to clear insight
ADVANCED ANALYSIS & VISUALIZATION

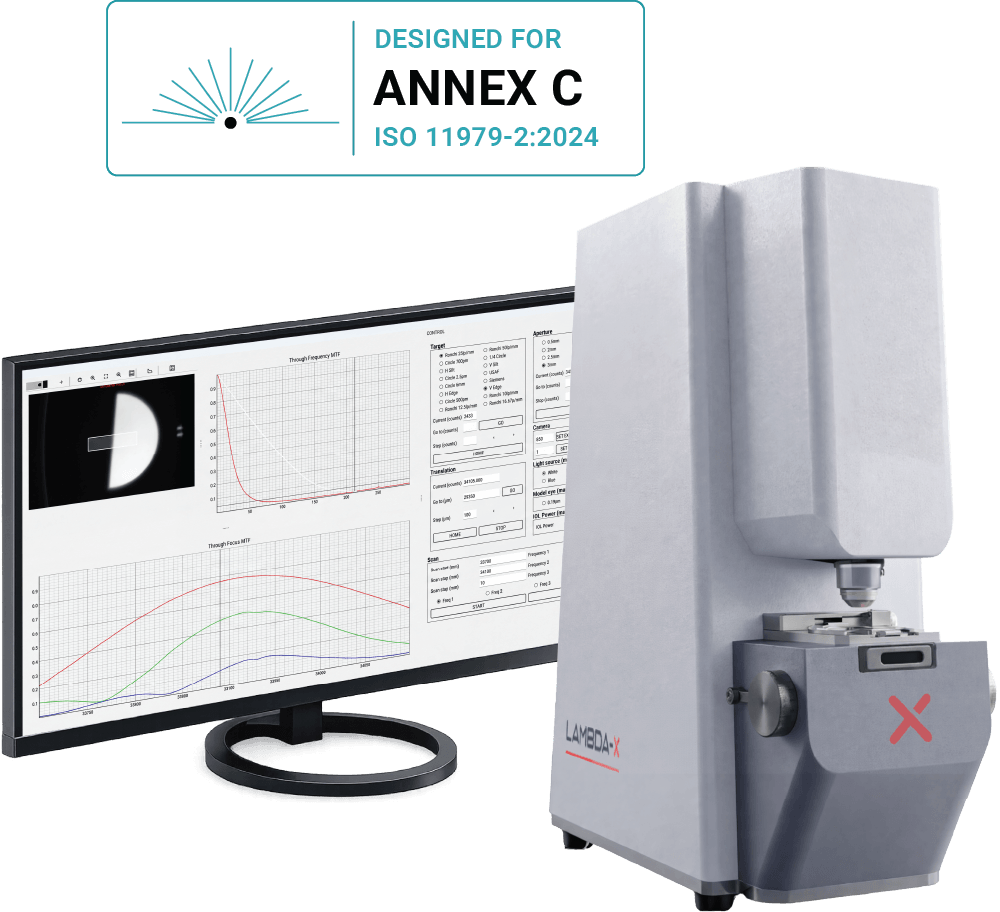

Designed to support ISO 11979-2:2024 Annex C, LUMI-Mentor transforms optical measurements into clear visual insights for analyzing through-focus performance, halo characteristics and image quality.
Representative LUMI-Mentor analysis examples are shown below.

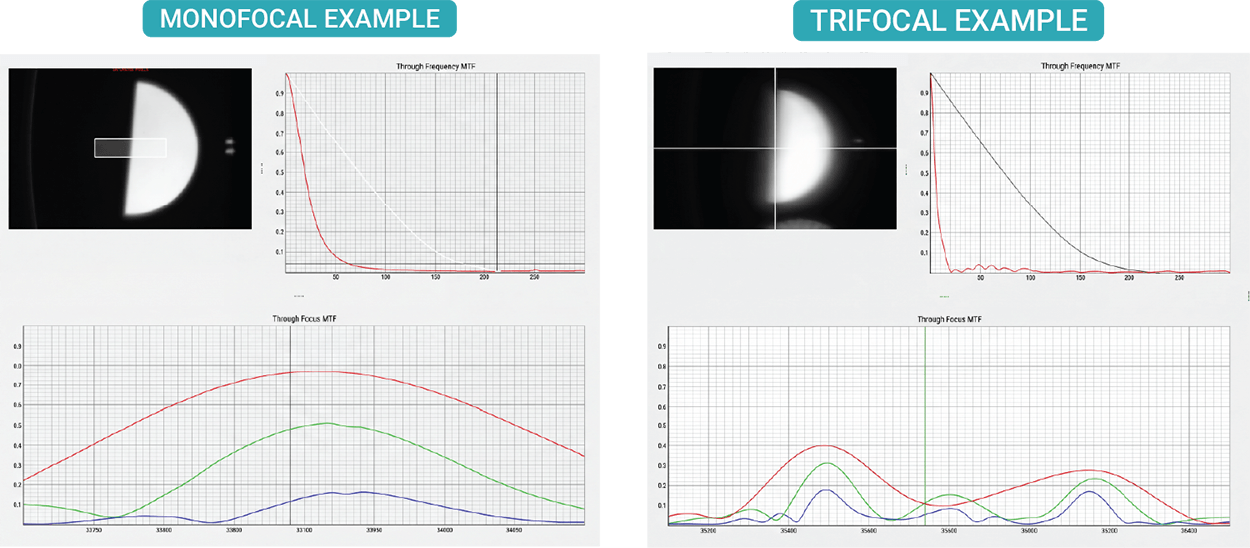

THROUGH-FOCUS MTF ANALYSIS
Visualize through-focus optical performance in accordance with ISO 11979-2:2024 Annex C.

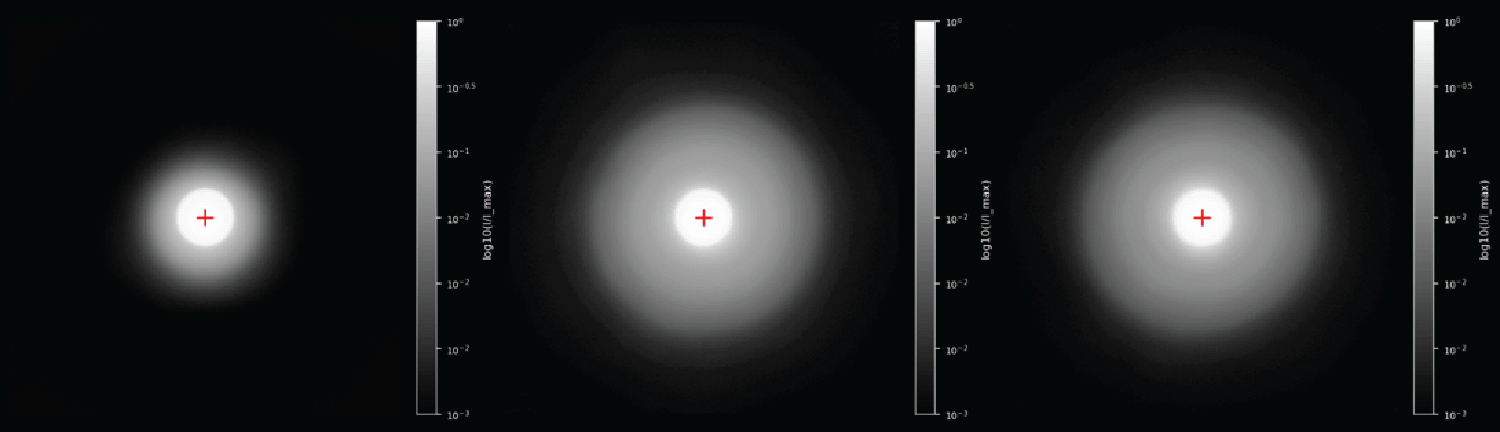

HALO CHARACTERIZATION
Quantify halo intensity and distribution for monofocal, trifocal and EDoF IOLs.

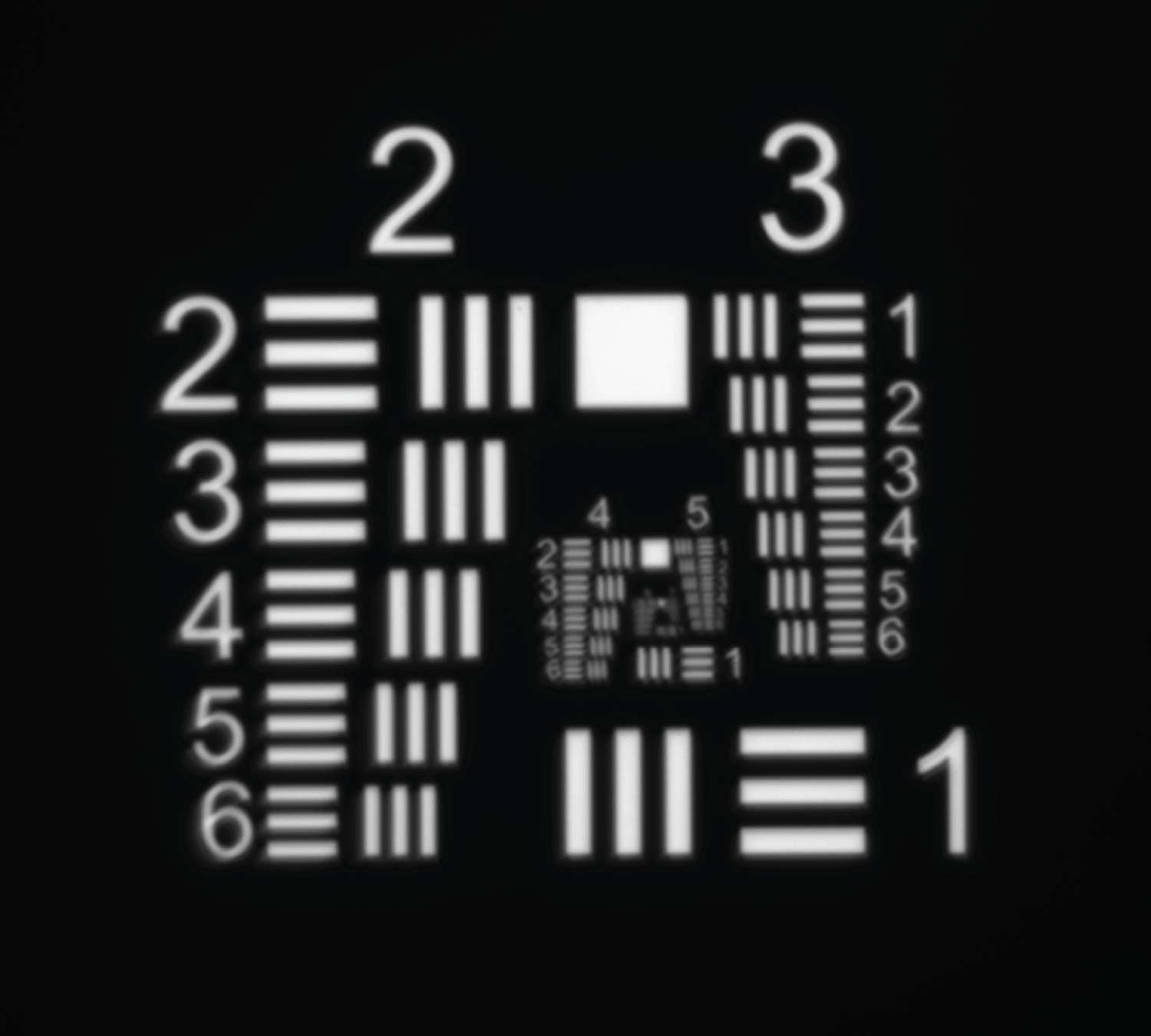

USAF TARGET VERIFICATION
Evaluate image quality with the integrated USAF resolution target.
EXPORT & DOCUMENTATION
Export images, graphs and measurement data for documentation, publication and regulatory submissions.
Displayed results are examples. Actual analyses depend on the selected IOL and measurement configuration.
BUILT TO COMPLY WITH ISO 11979-2:2024
Key Metrics and Capabilities

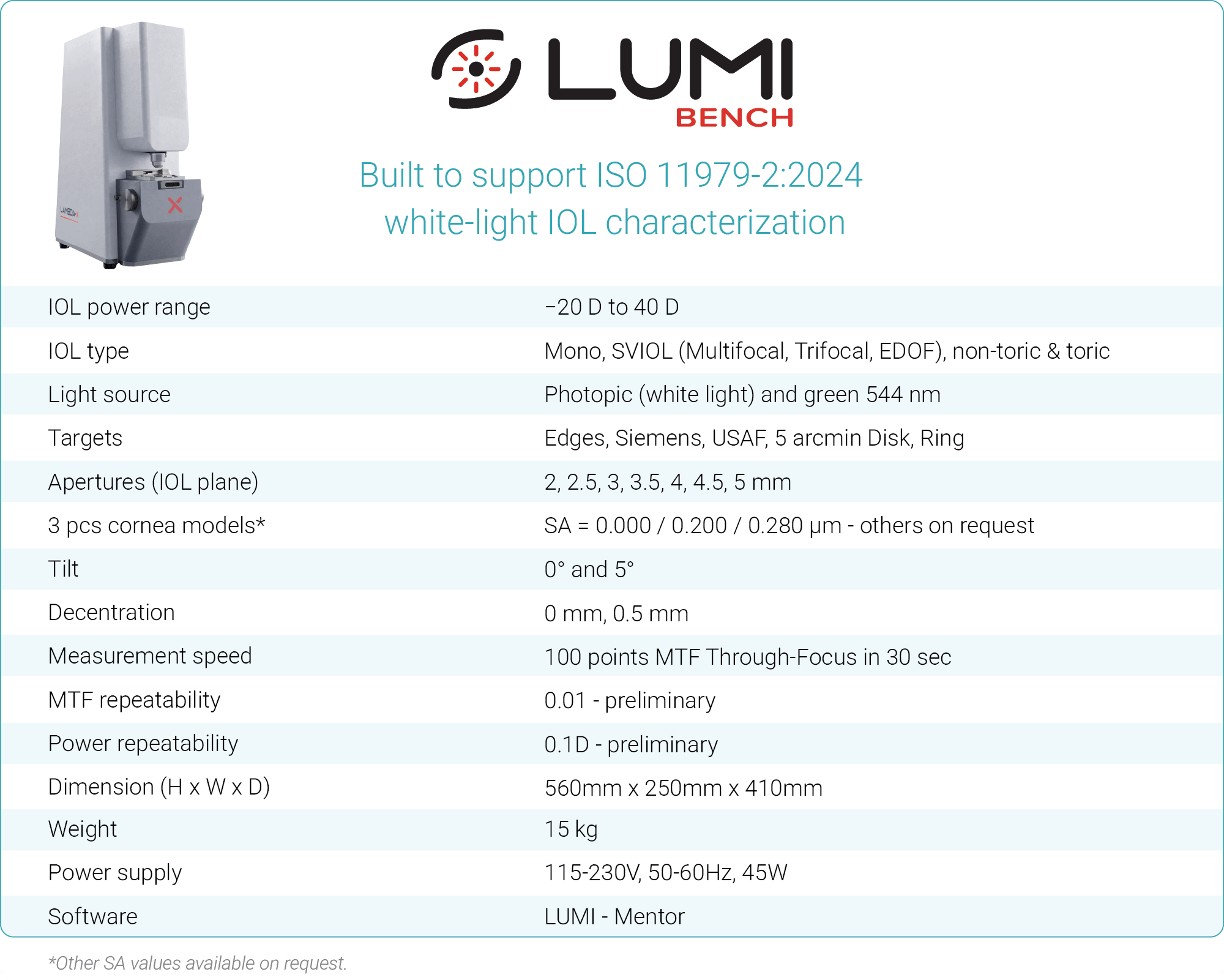

TECHNICAL SPECIFICATIONS
The LUMI BENCH comes with
Lumi-Mentor software,
necessary
accessories,
and
documentation
to get started immediately.
Download
BROCHURE
THE METROLOGY BENCH FOR MEASURING IOL PERFORMANCE IN ACCORDANCE WITH
