Optimized IOL Development, Production, and Quality Control Efficiency
KEY BENEFITS
High
Resolution
Delivers accurate optical power, MTF, dimension, and thickness measurements, with detailed power mapping and through-focus (TF) analysis.
Reduced
Cycle Time
Capable of testing up to 300 lenses per hour, significantly enhancing productivity.
Operator-
Independent
Designed for ease of use, no lens alignment needed, enabling non-experts to achieve high throughput.
Reduced
Inspection Cost
Enhances production efficiency and yield by providing unmatched gage R&r, ensuring reliable and consistent results.
Operator-Independent to Achieve Unmatched R&r
EASE OF USE
The NIMO Matrix system, along with its integrated IOL-Mentor software, is designed for ease of use and can be operated by non-experts with minimal intervention. This streamlined process ensures high-quality results efficiently and effectively.
Accurate Power Measurement
POWER
The NIMO Matrix ensures precise assessment of the optical power of intraocular lenses (IOLs). The NIMO Matrix measures the high resolution wavefront and computes the power profiles and the detection of sphere, cylinder, addition powers, and toric axis, essential for high-quality IOL production.
High Precision
Accurate assessment of optical power with detailed power maps and profiles, ensuring precise lens characterization.
Comprehensive Analysis
Measures sphere, cylinder, and power addition to provide a comprehensive evaluation of the lens optical quality.
Flexible Measurement
Accurate assessment of optical power with detailed power maps and profiles, ensuring precise lens characterization.
User-Friendly
Simplified measurement process with no need for lens alignment, reducing operator dependency.
Modulation Transfer Function
MTF
The NIMO Matrix provides detailed Modulation Transfer Function (MTF) calculations, ensuring superior image quality assessment for IOLs. This includes through-focus and through-frequency MTF data, providing a comprehensive understanding of lens performance.
Detailed MTF Analysis
Provides through-focus and through-frequency MTF, giving a full characterization of lens imaging performance.
Multiple Apertures
Simultaneously calculating MTF at up to 3 different apertures and multiple frequencies for thorough lens performance analysis under various conditions.
Wavefront Analysis
Comprehensive wavefront calculations for precise optical quality assessment, ensuring high-resolution results.
Versatile Use
Suitable for all types of refractive IOLs, including multifocal and EDOF lenses.
Comprehensive Data
Delivers high-resolution MTF curves for in-depth analysis, supporting quality control and product development.
Precise Dimensional Analysis
DIMENSION
With the NIMO Matrix, you can perform precise dimensional analyse of IOLs. The system automatically recognizes critical dimensions and offers customizable measurement points based on customer specifications, ensuring thorough dimensional analysis in IOL production.
Custom Measurements
Customizable measurement points as per customer specifications, providing flexibility in quality control.
Extended Field of View
Enable comprehensive haptics measurement and lens diameters (optical and overall) verification.
Automatic Lens Recognition
Detect automatically the lens diameter and optical center for precise alignment and quality control.
Versatile Capability
Measures both geometric and optical centers, ensuring thorough dimensional analysis.
Reliable Thickness Measurement
THICKNESS

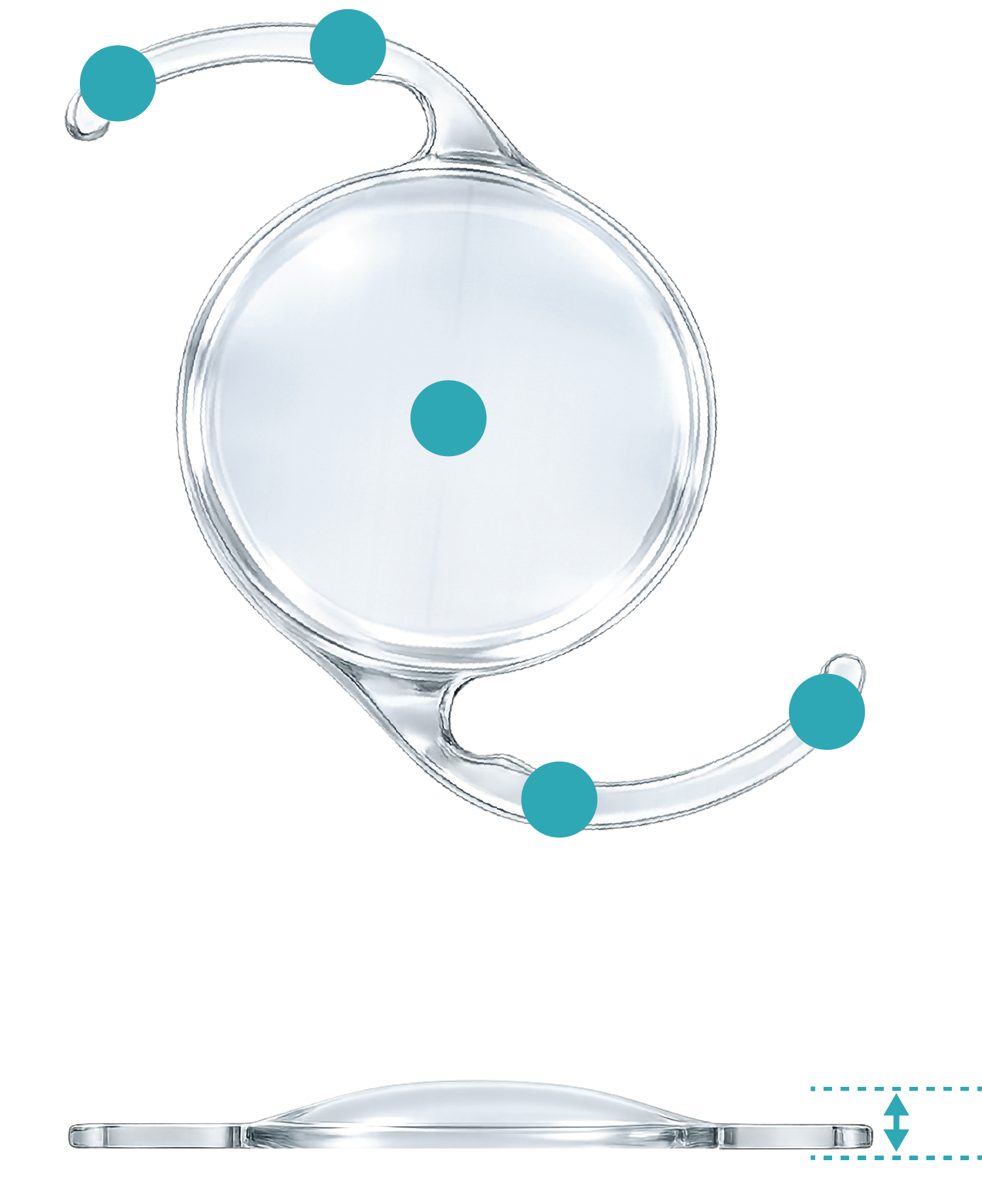

The NIMO Matrix provides unique thickness measurement capabilities for IOLs. It uses state-of-the-art technology to measure thickness at multiple points, ensuring comprehensive and reliable thickness profiles essential for quality control.
Multiple Points
Configurable to measure thickness at multiple points, including the optical center, haptics, and lens edges.
Advanced Techniques
Utilizes confocal sensor and advanced processing to ensure repeatability and accuracy.
Consistent Accuracy
Ensures precise thickness measurements with high reliability, supporting consistent product quality.
User-Defined Points
Allows for custom thickness measurement points, offering flexibility in testing protocols.
Detailed Reporting for All Measurements
Comprehensive Measurement Reporting
The NIMO Matrix provides comprehensive and detailed reporting for all measurements, ensuring thorough documentation and analysis.
Integrated Reporting
Combines power, MTF, dimension, and thickness measurements into a single, comprehensive report.
Customizable Templates
Tailor reports to meet specific documentation and regulatory requirements.
Raw Data Export
Comprehensive data export for extended analysis and informed decision-making.
Comprehensive Analysis
Includes detailed graphs, charts, and summaries for easy interpretation.
Quality Assurance
Ensures all measurement data is accurately recorded and easily accessible for quality control purposes.
TRUSTED BY INDUSTRY EXPERTS
Additional Analysis Capabilities
SOFTWARE PLUG-INS
The IOL-Mentor software is designed to be flexible and extendable, offering a variety of plug-ins to enhance its functionality and tailor it to specific needs.
Automatic Toric Lens Marks Detection (TLMD)
The TLMD plugin automates the detection of engraved toric marks on IOLs to determine axis orientation. By reducing manual input, it minimises human error and speeds up the measurement process. Custom detection patterns can be configured and saved using a dedicated interface. Parameters such as threshold, angle range, and minimum mark spacing are adjustable to ensure robust performance across various lens types.
Automated Detection: Identifies toric lens engravings with predefined patterns, reducing manual errors.
Axis Computation: Measures the alignment error between toric marks and the actual lens axis.
Flexible Modes: Supports Auto, Manual, and None detection methods to fit different workflows.
Pattern Management: Allows creation and storage of custom detection patterns.
Extended Depth of Focus (EDoF)
The EDoF plugin provides two complementary evaluation modes – Peak + Addition and Depth of Focus (DoF) – to assess lens performance across a range of focal points. It is particularly useful for analyzing complex designs such as multifocal and EDoF IOLs.
Peak + Addition Measurement: Evaluates MTF at a chosen addition point and visualizes the integrated optical quality over that zone.
Depth of Focus (DoF) Measurement: Quantifies the optical range where contrast remains above a user-defined MTF threshold.
Custom Parameters: Supports configurable inputs such as addition value, spatial frequency, and peak selection (far/intermediate/near).
Enhanced Visualization: Displays shaded MTF curve zones and markers for intuitive interpretation of depth performance.
Decentration Analysis
The Decentration Analysis plugin measures and verifies the alignment between the optical and geometrical centers of an IOL. It ensures that the optics are properly centered relative to the lens body, helping to guarantee lens quality and compliance in production.
Center-to-Center Verification: Detects offset between optical and geometrical centers with high precision.
Quality Assurance: Ensures lenses meet alignment specifications for both R&D and manufacturing.
Operator-Independent: Automated detection reduces variability and improves repeatability.
Improved Traceability: Results can be stored and compared across batches for robust process control.
Multi-focus
The Multi-focus plugin enhances through-focus analysis by detecting multiple focal points in intraocular lenses (IOLs). This enables evaluation of bifocal and trifocal designs beyond the single focus detected in the base software.
Extended Detection: Identifies up to two additional foci (for trifocal lenses) from through-focus MTF curves.
Accurate Performance Mapping: Provides detailed information on optical quality across multiple addition points.
Advanced Lens Analysis: Supports assessment of complex IOL designs, including multifocal and trifocal configurations.
ISO2 Model Eye
The ISO2 model eye plugin enables standardized evaluation of IOLs by applying controlled levels of spherical aberration, as defined by the ISO 11979-2 recommendations. This provides a consistent and reliable reference environment for assessing lens performance.
Configurable Aberrations: Choose from predefined ISO2 spherical aberrations (0.00 μm, 0.10 μm, 0.16 μm, 0.20 μm, 0.28 μm) or freely set values up to 0.45 μm for advanced testing.
Standardized Evaluation: Ensures results align with ISO2 requirements, supporting consistent comparisons across different IOL designs.
Flexible Processing Modes: Available in both paraxial and non-paraxial processing, allowing realistic testing conditions.
Enhanced Analysis: Provides a reliable basis for comparing lens performance under controlled optical conditions.
Phakic Model Eye
The Phakic Model Eye plugin extends the synthetic model eye by including a crystalline lens, enabling realistic testing of phakic IOLs. It provides a controlled environment for evaluating lens performance while maintaining compatibility with the standard model eye (cornea).
Realistic Simulation: Incorporates both a crystalline lens and phakic IOL for accurate optical modeling.
Flexible Configuration: Can be combined with the standard model eye (cornea) for comprehensive testing setups.
Standardized Evaluation: Provides a reproducible environment for consistent comparison of phakic IOL designs.
Extended Applications: Supports research and development of phakic IOLs alongside conventional IOL metrology.
9th Order Polynomial Correction
The plugin allows refined post-processing of power results using a 9th-order polynomial. It expands on the default 4th-order correction in IOL-Mentor to better align reported values with reference standards. While it does not alter the measured curve itself, it applies a correction to the reported power values in the Results section. This is useful for calibration and traceability when higher-order deviations are present in the system.
Extended Correction Range: Applies a polynomial fit up to the 9th degree to handle complex deviations.
Custom Coefficients: Supports individual input for each coefficient (A0 to A9) to match calibration needs.
Improved Result Accuracy: Refines displayed power values to better match actual lens behavior.
Standards Compliance: Supports precise reporting in line with internal or external QA standards.
Active Directory
Registered Windows users can log in with their existing credentials, avoiding duplicate accounts. This integration ensures your security policies and user management are applied automatically, enhancing both security and ease of use.
Production Software Integration API
The IOL-Mentor API enables full integration with the production and quality control environments. It supports remote control of the instrument, automated measurement workflows, real-time data extraction, and secure connectivity with internal and third-party systems.
This makes it ideal for centralized floor management, robotic setups, and custom enterprise software solutions – ensuring scalable and repeatable IOL measurements across the most demanding production lines.
Remote Instrument Control: Configure, calibrate, and operate instruments from your central software – including parameter updates and system references.
Automated Measurement Workflows: Trigger sequences such as optical reference, lens loading, and measurement completion – enabling integration with robotic arms.
Real-Time Data Access: Extract measurement results instantly for QA validation, ERP systems, or production databases.
Template Management: Create and lock measurement templates across instruments and locations – ensuring consistency and speed.
Software Ecosystem Compatibility: Easily integrate with in-house dashboards, LIMS, ERP, and QA systems through the public API. This enables flexible deployment and aligns the instrument with existing digital workflows for efficient production and traceability.
Essential Add-ons for Superior Results
ACCESSORIES
We offer a variety of accessories designed to enhance the NIMO Matrix system. These specialized tools ensure precision, efficiency, and optimal performance in your IOL production and testing.
Sorting Tray
Enhances the quality control process with its quick visual indicators: green for approved lenses and red for rejected ones.
Additional & Custom Tray
Custom trays tailored to your specific measurement needs and IOL designs.
Calibration Lens Kit
Select from calibrated plano-convex glass lenses. Spherical and Toric lenses in stock; custom options upon request.
Calibration Tray
Ensures precise and reliable calibration of the NIMO Matrix , maintaining accuracy across all measurements.
Key Metrics and Capabilities
TECHNICAL SPECIFICATIONS
The NIMO Matrix instrument comes with IOL-Mentor software, necessary accessories, and documentation to get started immediately.
Download
BROCHURE
High-Volume Metrology For Refractive IOLs
A UNIQUE SOLUTION
Power | MTF | Dimension | Thickness

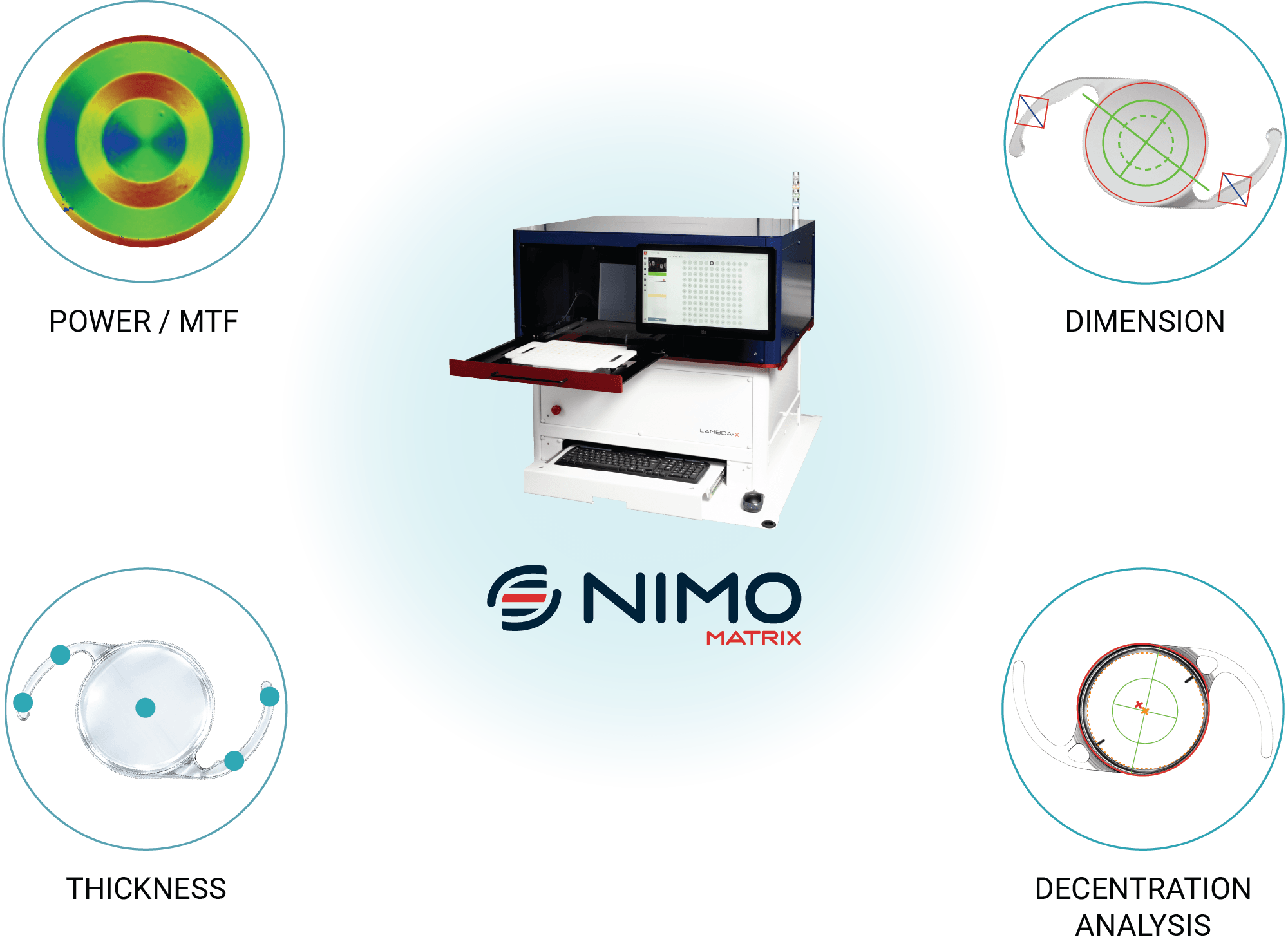

NIMO MATRIX Instrument
The NIMO Matrix is a state-of-the-art, fully automated instrument designed for the accurate and efficient testing of refractive intraocular lenses (IOLs). Building upon the renowned NIMO technology, the Matrix system offers exceptional accuracy and speed, with a tray size of up to 121 lenses.
- Unmatched Speed and Efficiency: Capable of testing up to 300 lenses per hour
- Unique 4-in-1 Measurement: Power, MTF, Dimension, and Thickness
- Ready-to-Use and Compact: Off-the-shelf product that can be easily tailored to meet your specific metrology needs
IOL-MENTOR Software
The IOL-Mentor software is an advanced, intuitive suite designed to operate the NIMO Matrix instrument. It streamlines the process of intraocular lens (IOL) measurement and analysis, ensuring efficient and accurate results.
- User-Friendly Interface: Simplifies the setup & execution of exhaustive measure, enhancing productivity & efficiency
- Comprehensive Analysis: Detailed reports on power, image quality (MTF), dimension, and thickness measurements
- Optimized for Production: Focuses on speed, accuracy, and ease of use
IOL-MENTOR Software Plug-ins
The IOL-Mentor software is designed to be flexible and extendable, offering a variety of plugins to enhance its functionality and tailor it to specific needs. These plugins provide additional analysis capabilities ensuring that the NIMO Matrix instrument can accommodate to any innovative lens design.
- Enhanced Analysis Plugins: Allow users to analyze premium lens, including Multifocal, EDOF, and more
- Reporting Plugins: Enhance the software's ability to generate detailed, customizable reports
- Integration Plugins: Enable easy integration of the NIMO Matrix into the production line
NIMO Matrix Accessories
Enhance the functionality and efficiency of your NIMO Matrix system with our range of specialized accessories. Designed for the NIMO Matrix, these accessories provide additional capabilities and ensure optimal performance in your IOL production and testing processes.
- Sorting Trays: Side sorting station to offload and sort IOLs, ensuring separation of defective lenses.
- Calibration Kits: Comprehensive kits for precise and reliable calibration.
- Custom Trays: Tailored trays to match measurement specifications (4-in-1) and IOL design.
Services & Support
At Lambda-X, we provide comprehensive services to ensure you get the most out of your NIMO instrument and software. Our services are designed to maintain optimal performance and achieve the highest quality standards in your production processes.
- Installation and Training: Professional installation and thorough training for your team
- Technical Support: Support and remote diagnostics to minimize downtime
- Maintenance and Calibration: Regular maintenance and precise calibration to ensure accuracy and reliability
- TSA: Includes technical support, software updates, maintenance, and re-calibration with QA calibration reports.
Ophthalmic Inspection Instruments
EXPLORE OUR FULL RANGE
Explore all our other metrology solutions for ophthalmic lenses, each designed to meet the unique needs of lens manufacturers. Enhance your production efficiency, ensure precise quality control, and achieve unmatched performance with our specialized instruments.
Intraocular Lenses
Contact Lenses
Spectacle Lenses
